REVERSE ENGINEERING, INSPECTION, AND RAPID PROTOTYPING
No drawing. No spec sheet. No problem.
The Part Exists. The Data Doesn't.
You've got a part that needs to be reproduced, inspected, or documented — and no usable drawing to work from. Maybe it's obsolete, maybe it was never on paper to begin with, maybe it just needs to be verified against what it's supposed to be. Either way, you need someone who can turn the physical part into real, usable data.
We Document It So the Next Order Is Easy
We don't just capture a scan and hand it back. We give you notes on what we found, so if you ever need that part again, the data's already done. Our Faro Edge CMMs with Laser Line 3D Scanning handle on-the-go CAD to part comparison. Our Faro Laser Tracker Vantage S handles machine alignment and large part inspection. Our Faro Focus S150 captures massive datasets you can export into the design software you already use. We've done this for manufacturing, automotive, aerospace, and engineering clients, capturing data from parts as small as a golf ball to an entire facility.
Equipment Built for Precision Data Capture
We are equipped for almost any scenario imaginable, and even some you haven't thought of yet. See below for more details.
- FARO Quantum Max 3 Meter
- Faro Laser Tracker Vantage S

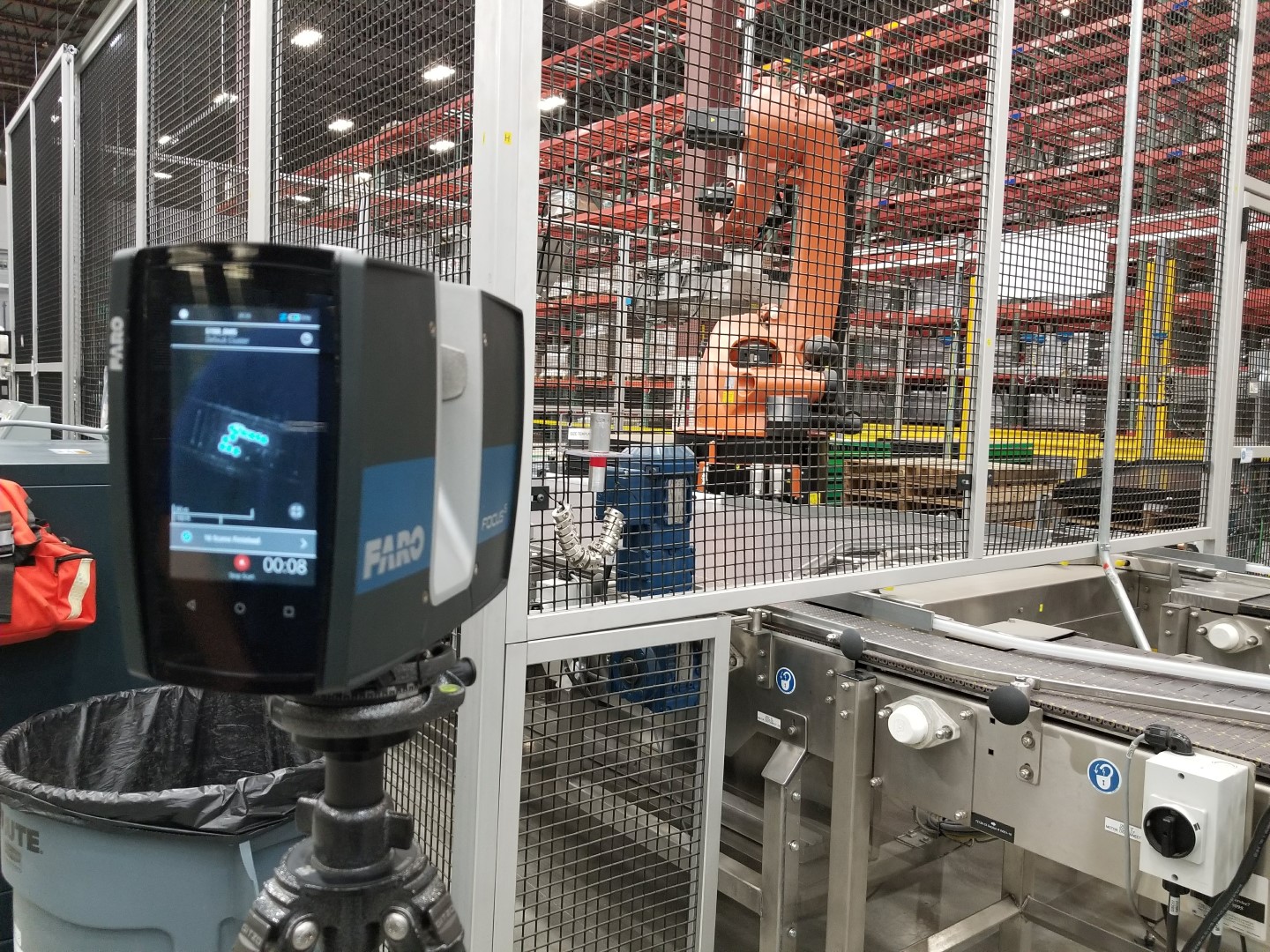

- Faro Focus S150
- Geomagic Design X reverse engineering software
- Polyworks Inspector software
- SolidWorks design software
- Up to 10" x 10" x 10" 3D printing
- Full-service machine and fabrication shop
Tell Us What Needs to Be Captured
Send us details on the part or facility, and we'll tell you what it takes to get you real, usable data.
"Went there needing an obscure gear made for a 75 year old Sears lathe. They were able to produce what I needed on a 3D Printer out of Nylon and out of Poly-carbonate plastics. Both were perfect and the durability has been exceptional. No one else wanted to touch this job due to the double gear 20 and 44. Thanks Trucker!!"
— Doc Carl, Google Review
Frequently Asked Questions
What if I don't have any drawings for the part at all?
That's the most common reason people come to us for this service — we can capture the data directly from the physical part.
What size parts can you scan?
Anything from a part as small as a golf ball to an entire manufacturing facility.
What file formats do I get back?
Data exportable into the design software you already use — ask about your specific format and we'll confirm compatibility.
Can you take the part straight from scan to production?
Yes — we can move from reverse engineering directly into machining or fabrication in the same shop.
